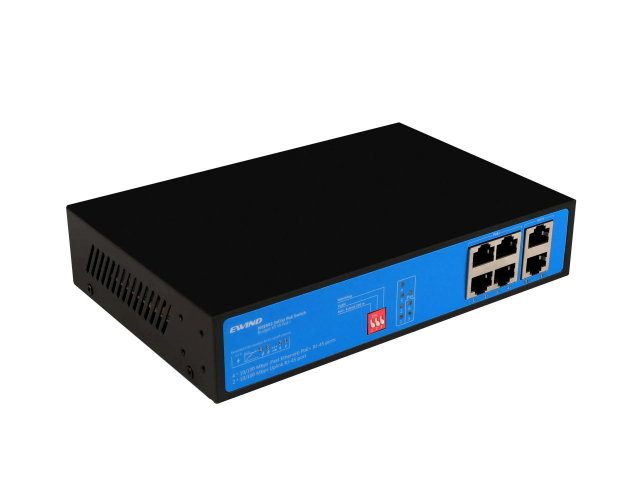

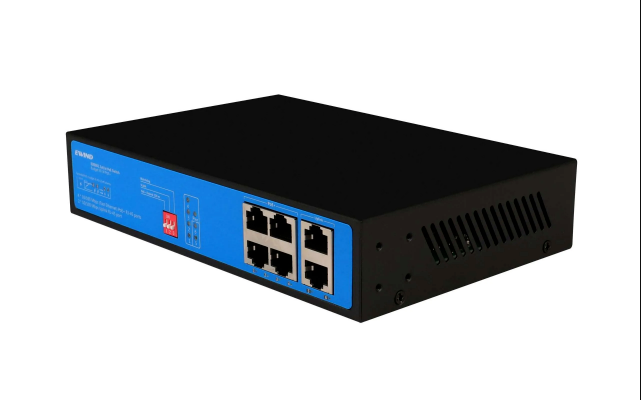

Model

EW-S1906CF-AP

Fixed Port

4*10/100Base-T/TX PoE ports (Data/Power)

2*10/100Base-T/TX Uplink RJ45 ports (Data)

POE Port

Port 1-4 support PoE @ IEEE802.3af/at

Feature

With the Dial code switch, support port priority by default.

E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;

V: Turn on, 1-4 Port support each port Isolation & VLAN;

D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3x.

PoE Standard

IEEE802.3af/at

Ethernet Port Feature

10/100Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive

Forwarding Mode

Store and Forward

Switching Capacity

1.2Gbps

MAC

2K

Buffer Memory

768K

Twisted Pair Transmission

10BASE-T: Cat5 UTP (≤300 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

Power Supply Pin

Default 1/2(+), 3/6(-)

MAX / AVERAGE Power Per Port

30W/15.4W

Total PWR / Input Voltage

65W (52VAC)

Power Consumption

Standby:<2W; Full load:<60W

LED Indicator

Power indicator: PWR (Green);

Network indicator: 1-4(Link/Act)/ (Green),5-6(Link/Act) (Green),

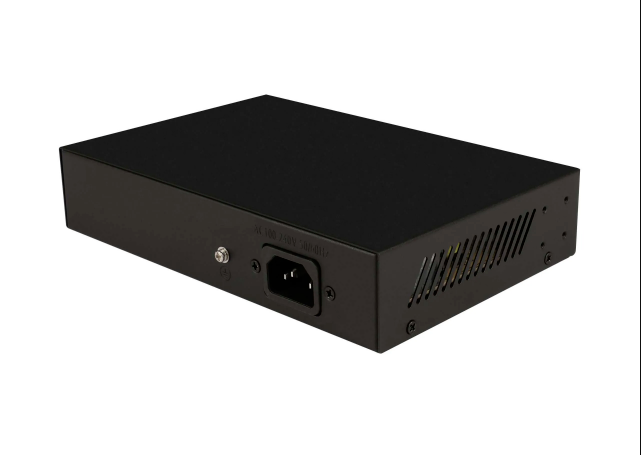

Power Supply

Build-in power adaptor AC100~240V 50-60Hz,65W

Operation TEMP / Humidity

-20~+55°C:5%~90% RH non condensing

Storage TEMP / Humidity

-40~+75°C;5%~95% RH non condensing

Dimension

195*130*40mm

Net /Gross Weight

<0.8kg / <1.2kg

Installation Method

desktop type, wall mounted

Protection

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV

Protection level

IP30

Certification

CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS
