Model

EW-S1710CFU-AP

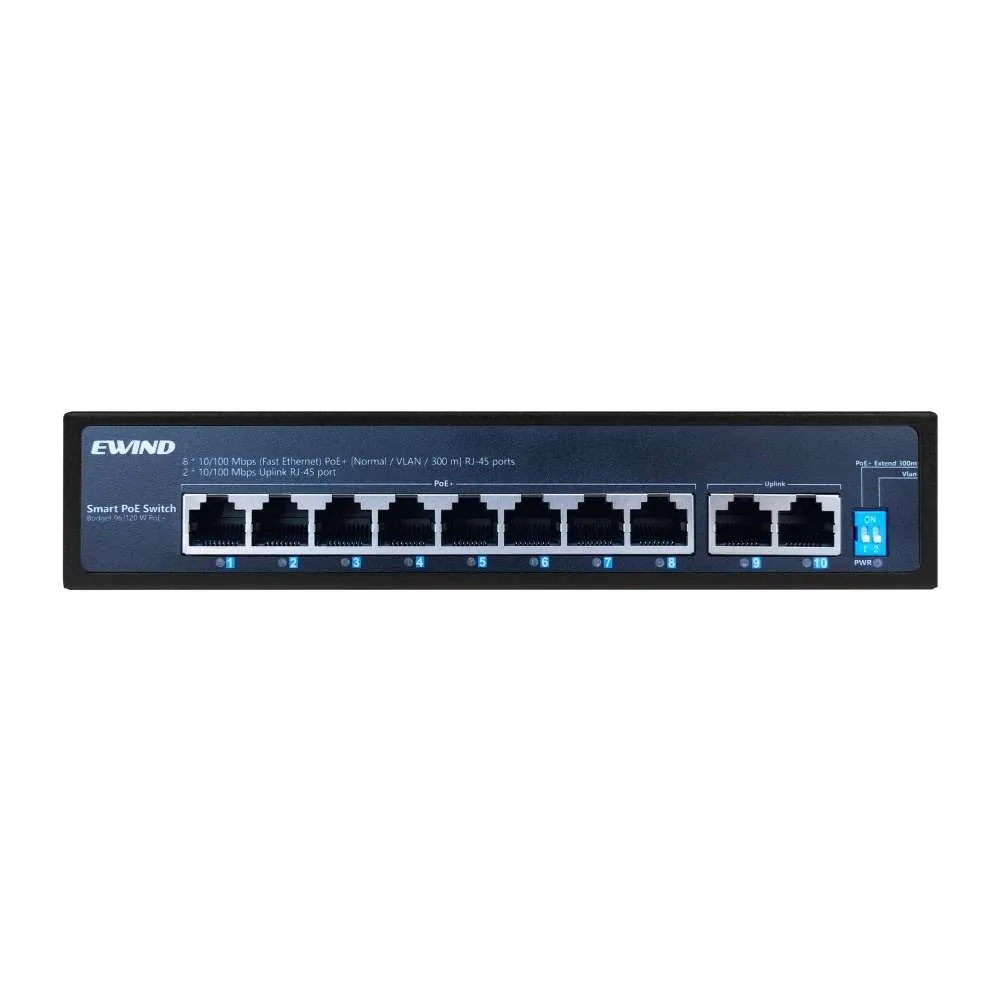

Fixed Port

8*10/100Base-T/TX PoE ports (Data/Power)

2*10/100Base-T/TX Uplink RJ45 ports (Data)

POE Port

Port 1-8 support PoE

Feature

With the Dial code switch, support port priority by default.

E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;

V: Turn on, 1-8 Port support each port Isolation & VLAN;

D: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3x.

Ethernet Port Feature

10/100Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive

Fiber Port Feature

Store and Forward

Switching Capacity

2.0Gbps

Forwarding Mode

1.488Mpps

MAC

4K

Buffer Memory

1.25M

Twisted Pair Transmission

10BASE-T:Cat5 UTP(≤300 meter)

100BASE-TX:Cat5 or later UTP(≤100 meter)

Power Supply Pin

Default 1/2(+), 3/6(-)

MAX / AVERAGE Power Per Port

30W/15.4W

Total PWR / Input Voltage

96W

Power Consumption

Standby:<4W;Full load:<96W

LED Indicator

Power indicator: PWR (Green);

Network indicator: 1-8(Link/Act)/ (Green),9–10(Link/Act)/ (Green),

Power Supply

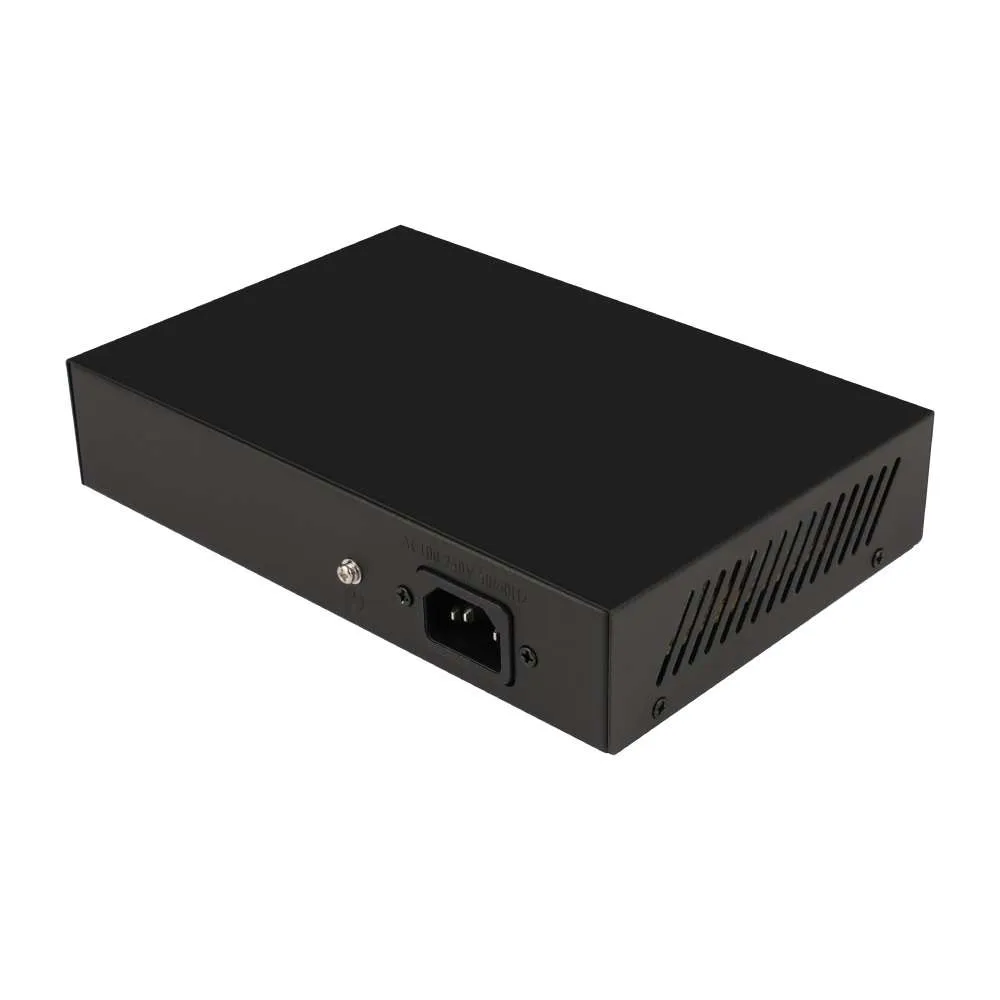

Build-in power adaptor AC100~240V 50-60Hz,120W

Operation TEMP / Humidity

-20~+55°C:5%~90% RH non condensing

Storage TEMP / Humidity

-40~+75°C;5%~95% RH non condensing

Dimension

195*135*40mm

Net /Gross Weight

<1kg / <1.2kg

Installation Method

desktop type ,wall mounted

Protection

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV

Protection Level

IP30

Certification

CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
